    Fast Speed Non Metal Materials CO2 Fly Laser Marking Machine

    Ask Lasest Price
    Certification : ISO,CE
    Price : Negotiation
    Delivery Time : 5-7 working days
    Payment Terms : T/T, Western Union, MoneyGram
    Supply Ability : 200-500 Sets/Month
    • Product Details
    • Company Profile

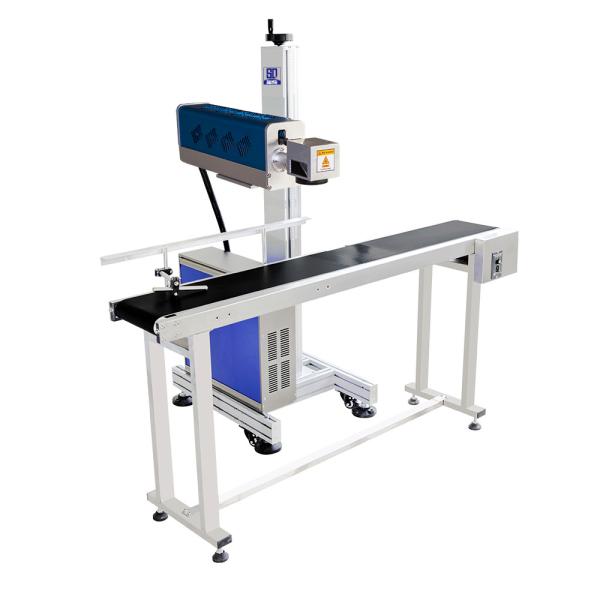

    Fast Speed Non Metal Materials CO2 Fly Laser Marking Machine


    Fast Speed Non Metal Materials CO2 Fly Laser Marking Machine


    CO2 fly laser marking machine is designed for assembly line, can be customized for any automatic production line, to meet the production needs of industrial automation era.It is the solution for laser marking plastic and natural materials such as wood, poly bag, plexiglass, paper, stone, textiles, and marble. The laser machine is extremely compact, modular and can fully integrated into any production line. The laser marking system is designed for high productivity while at the same time reducing operation costs.According to the power/model, the source is of a sealed type and then the supply with external gas is not necessary. When the source is semi-sealed, a refill can be simply with the replacement of a pressurized canister that provides the proper mixture of gases.


    Technical Parameters

    Laser power

    20W/30W/60W

    Laser Wavelength

    10.6μm

    laser type

    CO2 laser

    Max Single pulse energy

    1.0mj

    Pulse duration

    6-250ns

    Laser beam quality M2

    <1.2

    Repeating precision

    ±0.002mm

    Maximum line speed

    2 meters/s (Like beverage can reach 28,000 bottles per hour)

    Operating system

    Touch screen control system

    Marking Area

    110mm×110mm,200mm*200mm,300mm*300mm (optional)

    Marking depth

    0.01~1mm

    Laser source

    DAVI / Synrad (optional)

    Galvo scanner

    Sino-galvo

    Marking speed

    7000mm/s

    Minimum character

    0.15mm

    Minimum line width

    0.01mm

    Repeating frequency

    20KHz~60KHz

    Control Software

    Genuine EZCAD control system Compatible with win7/8/10

    Control board

    BJJCZ

    Marking content

    Graphics, text, bar codes, two-dimensional code, date, batch number, serial number

    Graphic format supported

    PLT, DXF, DST, AI, SDT, BMP, JPG, JPEG, GIF, TGA, PNG, TIF, CDR, DWG, etc.

    Working voltage

    220V / (50 OR 60 Hz) ,110V / 60Hz

    OPerating parameter

    0 - 40℃

    Cooling type

    Air cooling

    Lifespan of laser tube

    20000~30000 hours (recyclable)

    Service Provided

    installation,commissioning and training.Field
    maintenance and repair service,Video technical support,Engineers available to service machinery overseas

    Packing size

    120 *88 *38 cm

    Gross Weight

    100kg

    Control interface

    Standard USB port

    Working environment

    Clean and dust free or dust less

    Certification

    CE, FDA, ROHS

    Warranty

    2 Years
