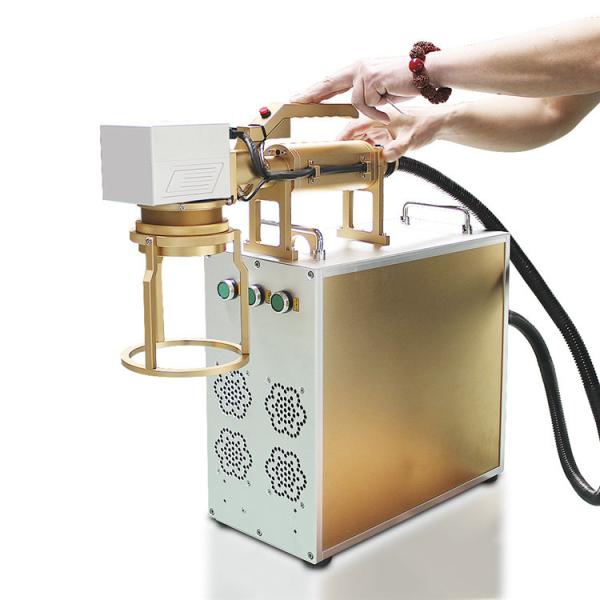

    50w Portable Handheld Laser Marking Machine For Metal

    Ask Lasest Price
    Certification : ISO,CE
    Price : Negotiation
    Delivery Time : 5-7 working days
    Payment Terms : T/T, Western Union, MoneyGram
    Supply Ability : 200-500 Sets/Month
    • Product Details
    • Company Profile

    50w Portable Handheld Laser Marking Machine For Metal

    50w Portable Handheld Laser Marking Machine For Metal


    Features
    1. Fast marking speed, high marking precision
    2. Professional and powful control systerm
    3. Pulse fiber laser source, long lifetime 100,000 hours.


    Type

    FST-20/30/50

    Power

    20W/30W/50W

    Laser Wavelength

    1064nm

    Marking Area

    150mm*150mm

    Optional Marking Area

    100mm*100mm / 150mm*150mm/200mm*200mm / 300mm*300mm

    Marking Depth

    ≤1.2mm

    Marking Speed

    800 standard characters/second

    Minimum Line Width

    0.012mm

    Minimum Character

    0.15mm

    Repeated Precision

    ±0.003mm

    Life-span of Fiber Laser Module

    100 000hours

    Beam Quality

    M2 <1.5

    Focus Spot Diameter

    <0.01mm

    Output Power of Laser

    10%~100% continuously to be adjusted

    System Operation Environment

    Windows XP / W7--32/64bits / W8--32/64bits

    Cooling Mode

    Air cooling--Built-in

    Temperature of Operation Environment

    15℃~35℃

    Power Input

    220V / 50HZ / single phase or 110V / 60HZ / single phase

    Power Requirement

    <400W

    Communication Interface

    USB

    Machine Dimension/after package

    650mm*210mm*550mm/880*420*700mm

    Net Weight/gross weight

    30KG/53kgs

    Optional (Not free of charge)

    Rotary Device, Moving Table, other customized Automation
