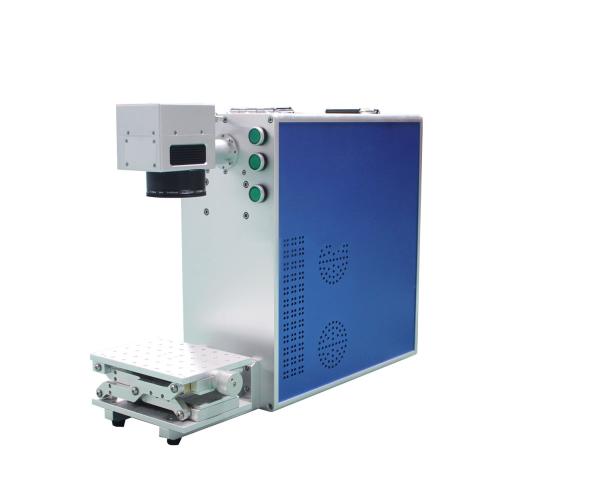

    Portable Fiber Laser Marker Machine

    Ask Lasest Price
    Certification : ISO,CE
    Price : Negotiation
    Delivery Time : 5-7 working days
    Payment Terms : T/T, Western Union, MoneyGram
    Supply Ability : 200-500 Sets/Month
    • Product Details
    • Company Profile

    Portable Fiber Laser Marker Machine

    Portable Fiber Laser Marker Machine


    Industry Application

    fiber laser marking machine was specially developed for industrial marking. The robust design with maintenance-free laser source guarantees constantly precise marking on the workpiece. Thanks to the modular structure of the laser and the large number of possible options, you can optimally adapt the SpeedMarker FL to your existing processes.


    Applicable Materials


    Metals and alloys (iron, copper, aluminum, magnesium, zinc and all other metals),plastics,rare metals and alloys (gold, silver,titanium), metal oxides (metal oxide may be), special surface treatment(Phosphatize, aluminum anodizing, electroplating the surface), ABS material (electrical appliances shell, daily necessities), ink (translucent keys, print products), epoxy resin (electronic components, packaging, insulation layer).etc.


    Parameter



    HT-10

    HT-20

    HT-30

    LASER POWER

    10W

    20W

    30W

    LASER WAVELENGTH

    1064nm

    1064nm

    1064nm

    FIBER LENGTH

    2.5m

    2.5m

    2.5m

    LASER UNIT USING LIFE

    100,000 hours

    100,000 hours

    100,000 hours

    MARKING SPEED

    <= 12000mm/s

    Character marking speed and production line speed depend on material , character size and desired marking quality

    MARKING SPEED

    2-3 digital(2*3mm)/ 0.01s

    3-5 digital(2*3mm)/ 0.01s

    5-8 digital(2*3mm)/ 0.01s

    MARKING DEEPTH

    0.01-0.2MM

    0.01-0.2MM

    0.01-0.5mm

    MIN. LINE WIDTH

    0.01MM

    0.01MM

    0.01MM

    MIN. CHARACTER HEIGHT

    0.2MM

    0.2MM

    0.2MM

    MARKING FILED

    (110*110mm

    (focal length f=160mm)

    (110*110mm (focal length f=160mm)

    Optional

    175mm lens

    (110*110mm (focal length f=160mm)

    Optional

    175mm lens , 250mm lens

    POWER SUPPLY

    220V 50HZ / 2A

    220V 50HZ/2A

    220V 50HZ/2A

    POWER CONSUMPTION

    300 W/ hours

    800W/ HOUR

    1000W/HOUR

    COOLING

    AIR

    AIR

    AIR

    POSITIONING

    Visible red power

    Visible red power

    Visible red power

    OPERTAION TEMPERATURE

    25℃ to 28℃

    25℃ to 28℃

    25℃ to 28℃

    HUMIDITY

    5% to 75% (no condensation)

    5% to 75% (no condensation)

    5% to 75% (no condensation)


    Portable Fiber Laser Marker MachinePortable Fiber Laser Marker Machine
