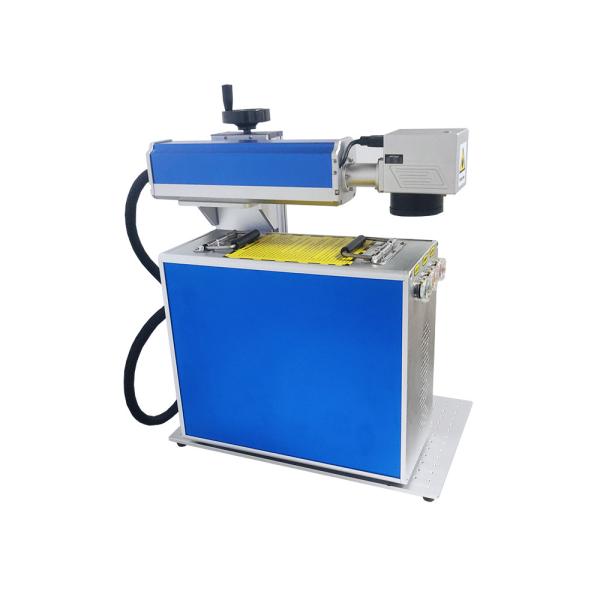

    20W 30W 50W 60W 100W Optical Fiber Laser Marking Machine

    Ask Lasest Price
    Certification : ISO,CE
    Price : Negotiation
    Delivery Time : 5-7 working days
    Payment Terms : T/T, Western Union, MoneyGram
    Supply Ability : 200-500 Sets/Month
    • Product Details
    • Company Profile

    20W 30W 50W 60W 100W Optical Fiber Laser Marking Machine

    20W 30W 50W 60W 100W Optical Fiber Laser Marking Machine


    Product Description


    Laser Type
    Fiber laser
    Laser Power
    20W 30W 50W 60W 100W
    Model
    CN-20W/30W/50W/60W/100W
    Laser Wavelength
    1064nm
    Marking Area
    75*75mm 110*110mm 150mm*150mm 175mm*175mm 200*200mm 300*300mm
    Marking Depth
    ≤1.2mm
    Marking Speed
    10000mm/s
    Minimum Line Width
    0.012mm
    Minimum Character
    0.15mm
    Repeated Precision
    ±0.003mm
    Life-span of Fiber Laser Module
    100 000hours
    Beam Quality
    M2 <1.5
    Focus Spot Diameter
    <0.01mm
    Output Power of Laser
    10%~100% continuously to be adjusted
    System Operation Environment
    Windows XP /7/8/10 32/64bits
    Temperature of Operation Environment
    15℃~35℃
    Power Input
    220/110v single phase
    Power Requirement
    <400W
    Communication Interface
    USB
    Machine Dimension/after package
    760*680*770mm
    Optional
    Rotary Device, Moving Table, other customized Automation

    Industry Application
    Portable Fiber Laser Marker Machine was specially developed for industrial marking. The robust design with maintenance-free laser source guarantees constantly precise marking on the workpiece.


    Applicable Materials
    Metals and alloys (iron, copper, aluminum, magnesium, zinc and all other metals),plastics,rare metals and alloys (gold, silver,titanium), metal oxides (metal oxide may be), special surface treatment (Phosphatize, aluminum anodizing, electroplating the surface), ABS material (electrical appliances shell, daily necessities), ink (translucent keys, print products), epoxy resin (electronic components, packaging, insulation layer).etc.
